vinnied Posted April 24, 2007 Report Share Posted April 24, 2007 There is a tool you can use for timing it screws into the plug hole, it has a rod that slides up and down that has milimiteres on it????? Any ideas Vinnie Quote Link to comment Share on other sites More sharing options...
woody Posted April 24, 2007 Report Share Posted April 24, 2007 Sammy Miller sells them or you can make your own by knocking the centre out of an old spark plug, screw it in the head, find TDC, slide a pencil down it and mark TDC on the pencil level with the top of the plug. Take out pencil, put a mark where the timing should be above the mark you made for TDC (eg 2mm above if your timing should be 2mm BTDC) and you have a home-made timing tool. When the piston is pushing the pencil up through the plug, when the timing mark appears you are 2mm BTDC. Tool is obviously better though. Quote Link to comment Share on other sites More sharing options...
vinnied Posted April 24, 2007 Author Report Share Posted April 24, 2007 Sammy Miller sells them or you can make your own by knocking the centre out of an old spark plug, screw it in the head, find TDC, slide a pencil down it and mark TDC on the pencil level with the top of the plug. Take out pencil, put a mark where the timing should be above the mark you made for TDC (eg 2mm above if your timing should be 2mm BTDC) and you have a home-made timing tool. When the piston is pushing the pencil up through the plug, when the timing mark appears you are 2mm BTDC.Tool is obviously better though. Cheers woody Vinnie Quote Link to comment Share on other sites More sharing options...
kevin j Posted April 24, 2007 Report Share Posted April 24, 2007 I made one from a plug body and short piece of brass rod, but it wasn't too accurate. Then I added a bracket on top with adjustable set screw. Adjust the set screw so brass pin just touched it at top. Then use feeler gauge to measure gap between screw and pin when piston is down BTC. used it for years. Worked, but tedious. Splurged on a good dial indicator, 0-1 inch. Took another plug body, bored out, added set screws on sides, and fitted dial indicator into it. Needed an extra long brass screw at the tip of the indicator to reach piston. It just screws in and out of the tip when I use it for this purpose. That works SO much better and faster and more accurate. Hate spending the money, but do it now and have the tool for life. Quote Link to comment Share on other sites More sharing options...
woody Posted April 24, 2007 Report Share Posted April 24, 2007 would you believe there is one on ebay...... ebay Quote Link to comment Share on other sites More sharing options...

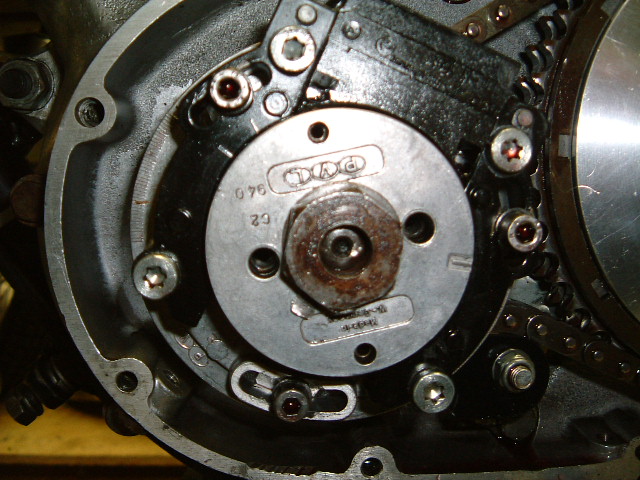

vinnied Posted April 24, 2007 Author Report Share Posted April 24, 2007 (edited) The egnition as it stands, this is top dead centre does it look right Vinnie Edited April 24, 2007 by Vinnied Quote Link to comment Share on other sites More sharing options...
vinnied Posted April 27, 2007 Author Report Share Posted April 27, 2007 Thanks for all your help, Sorted Vinnie Quote Link to comment Share on other sites More sharing options...
alan Posted April 27, 2007 Report Share Posted April 27, 2007 The egnition as it stands, this is top dead centre does it look rightVinnie Could be wrong,but it looks a bit retarded to me (assuming you have a high comp motor with an r cam). If I remember correctly, a good starting point is to mark a line on the stator on an 18mm chord from the corner of stator coil. Then set the mark on the rotor to this line on top dead. This gives a static advance of 20 deg BTC. There are PVL set up instructions on tinternet.... google PVL it's 4 or 5 pages in... but it is there some where. Quote Link to comment Share on other sites More sharing options...
