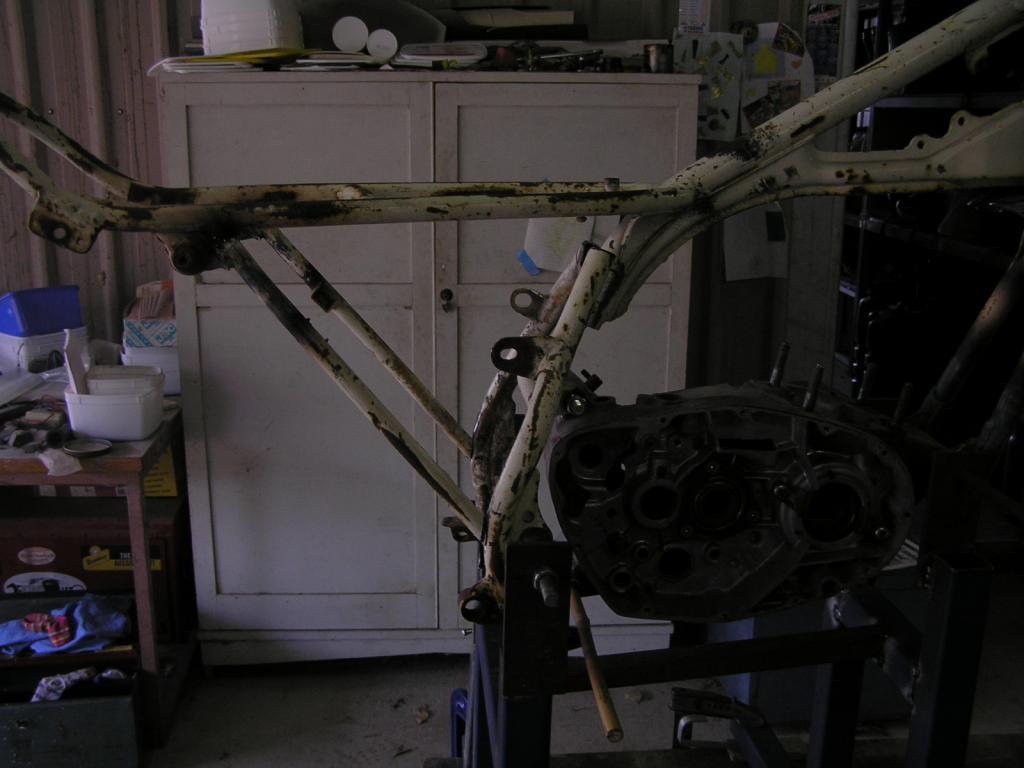

feetupfun Posted December 31, 2012 Report Share Posted December 31, 2012 Rear downtubes ready to be welded, and mid downtubes shortened and with ends shaped ready for bending inwards and forwards Quote Link to comment Share on other sites More sharing options...

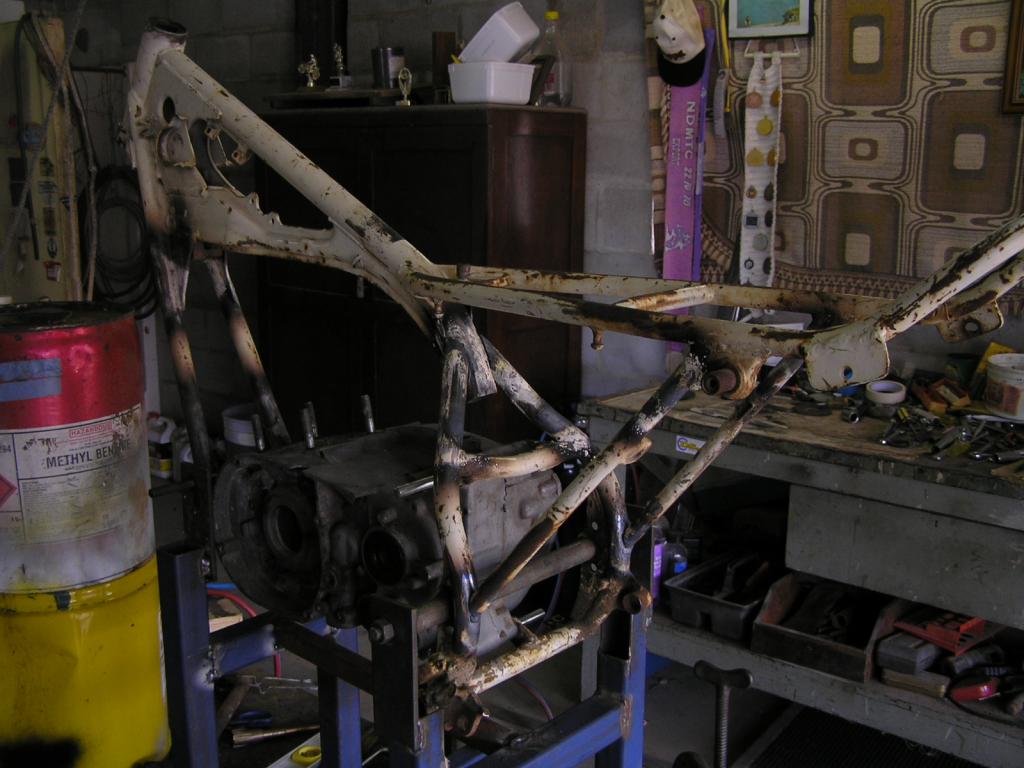

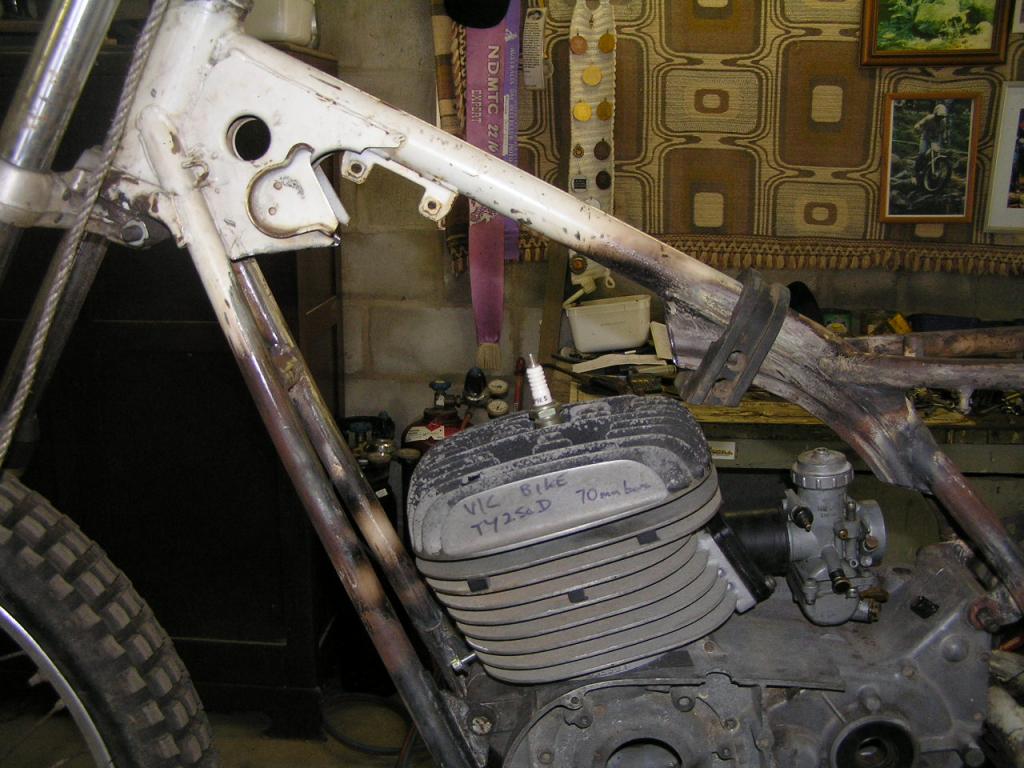

feetupfun Posted December 31, 2012 Report Share Posted December 31, 2012 Rear downtubes tacked into position. Mid downtubes bent inwards and forwards ready for welding Quote Link to comment Share on other sites More sharing options...

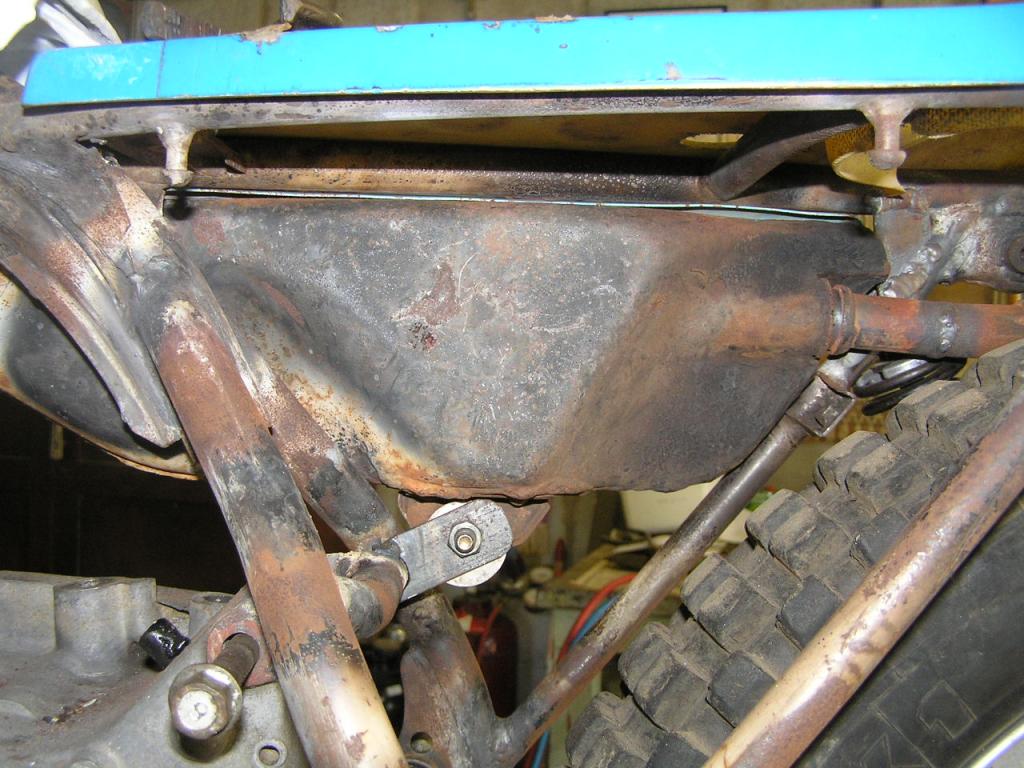

feetupfun Posted December 31, 2012 Report Share Posted December 31, 2012 Mods to toolbox brace Quote Link to comment Share on other sites More sharing options...

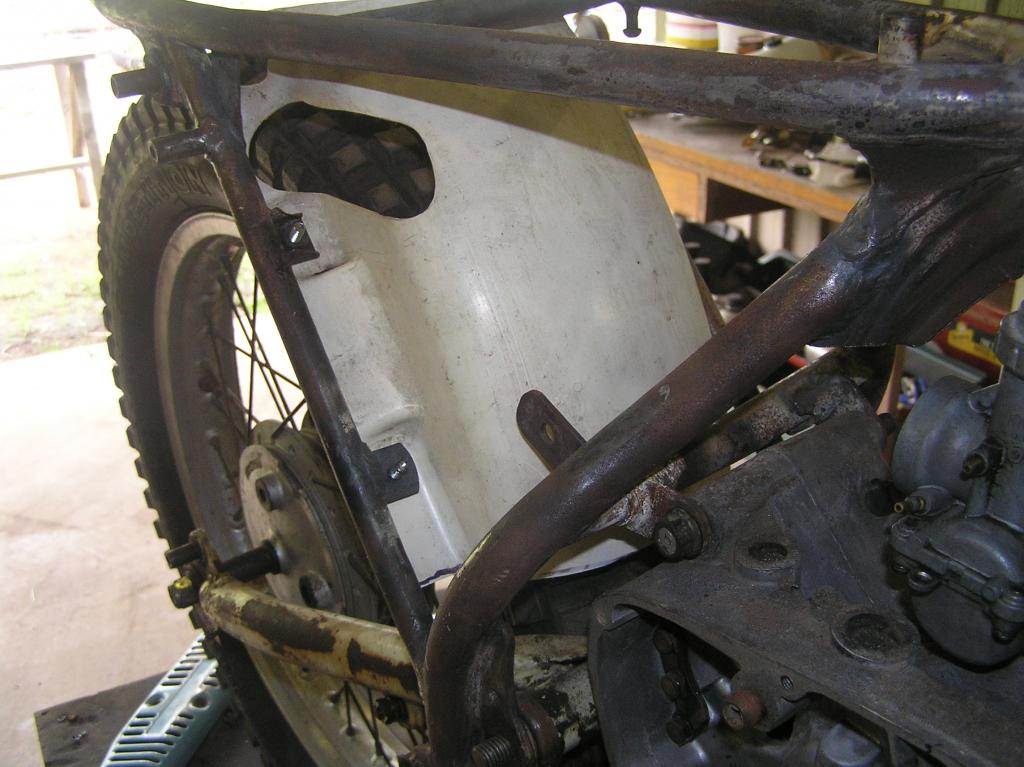

feetupfun Posted December 31, 2012 Report Share Posted December 31, 2012 toolbox brace completely removed! Quote Link to comment Share on other sites More sharing options...

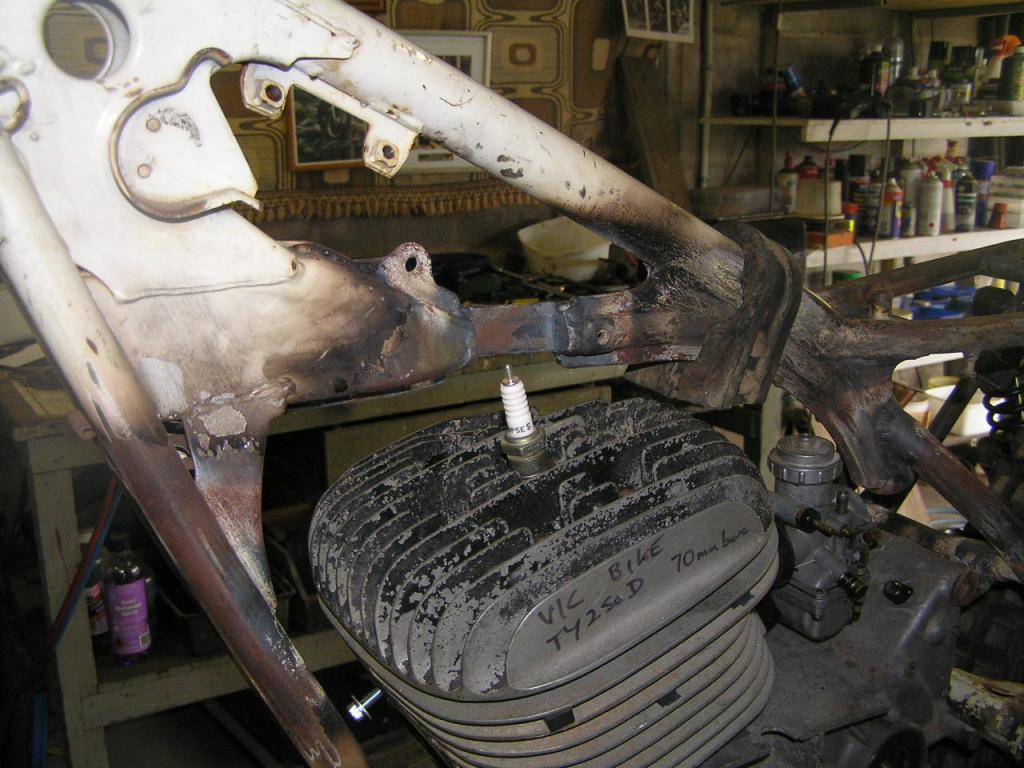

feetupfun Posted December 31, 2012 Report Share Posted December 31, 2012 (edited) Backbone end shortened to make room for air intake hose Edited December 31, 2012 by feetupfun Quote Link to comment Share on other sites More sharing options...

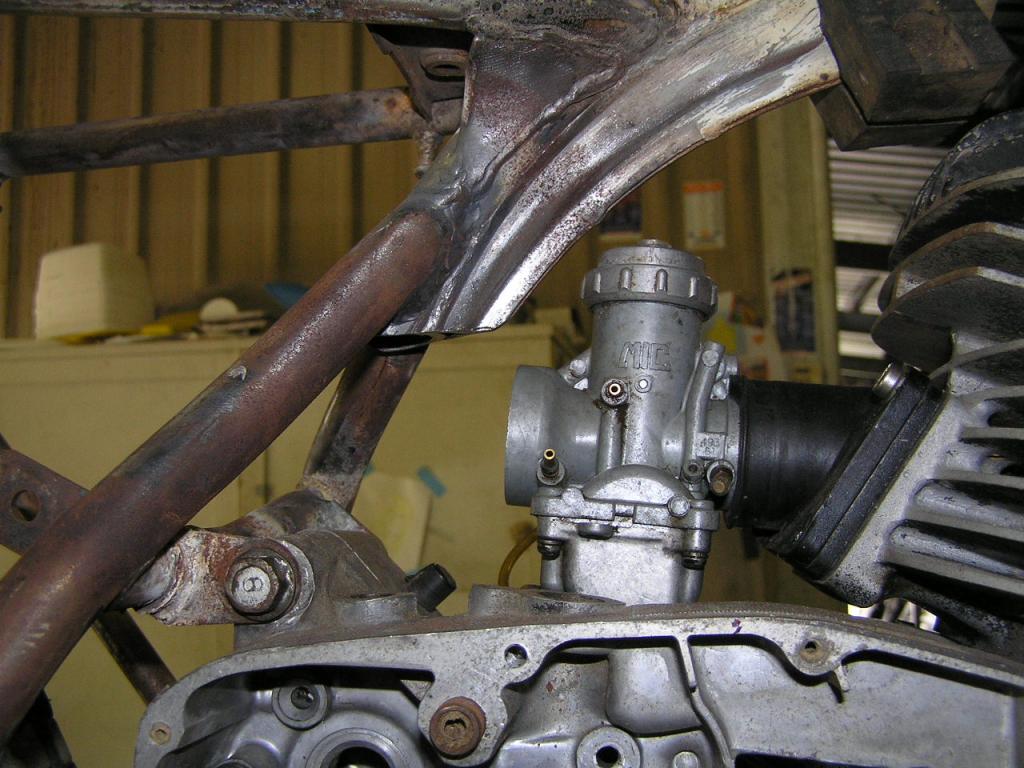

feetupfun Posted December 31, 2012 Report Share Posted December 31, 2012 Photo showing new mount for exhaust chamber, new lower mount for inner rear guard, new shockie mount and new frame gusset above shockie mount. Inner guard shown is fibreglass Majesty item made in early 1980s. Shockie mount pin goes right through downtube and is welded both ends. It is tapered from standard pin size on outer end to 4mm diameter on inner end. Quote Link to comment Share on other sites More sharing options...
feetupfun Posted December 31, 2012 Report Share Posted December 31, 2012 photo showing a test fit-up with suspension in place Quote Link to comment Share on other sites More sharing options...
htrdoug Posted December 31, 2012 Report Share Posted December 31, 2012 Man,there's nothing better than building yer own ****!!! Your Majesty build shames my little head angle mod on my Fantic All the fitting and refitting to check clearances pays off in the end,I started to do my garage projects like I was being paid by the hour rather than paying,Quality of my hacks improved immediately. Once Fantic is done I wanna look for something stupid to make into a trials bike,haven't decide what yet,depends on what I come across when I'm ready Quote Link to comment Share on other sites More sharing options...

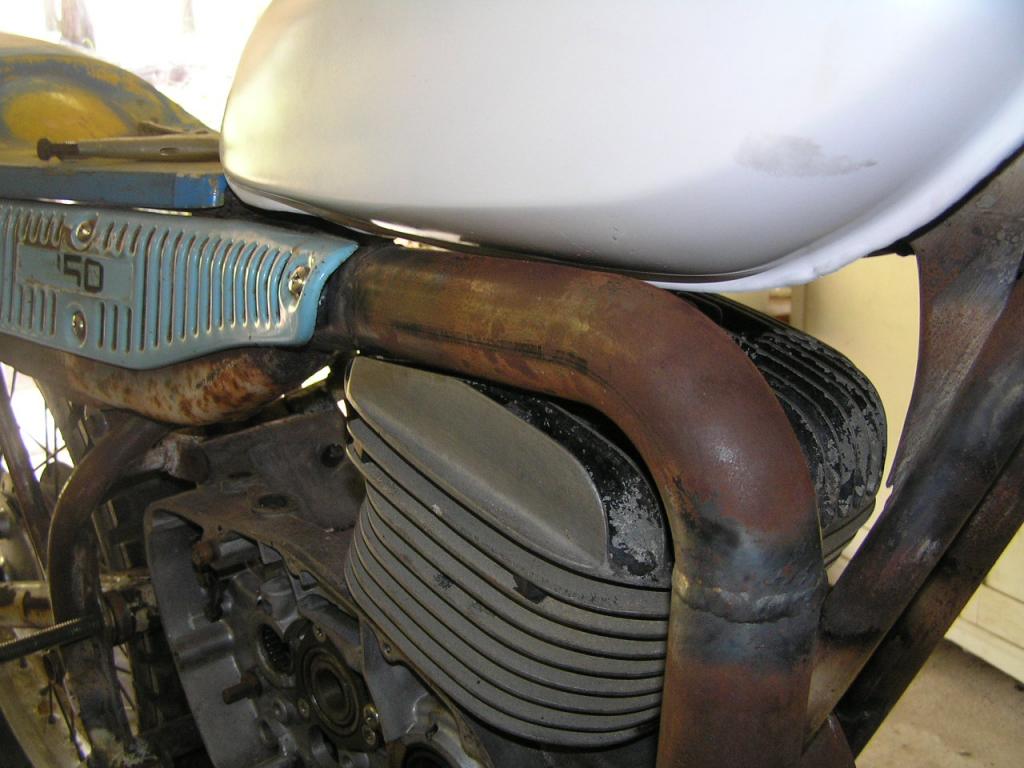

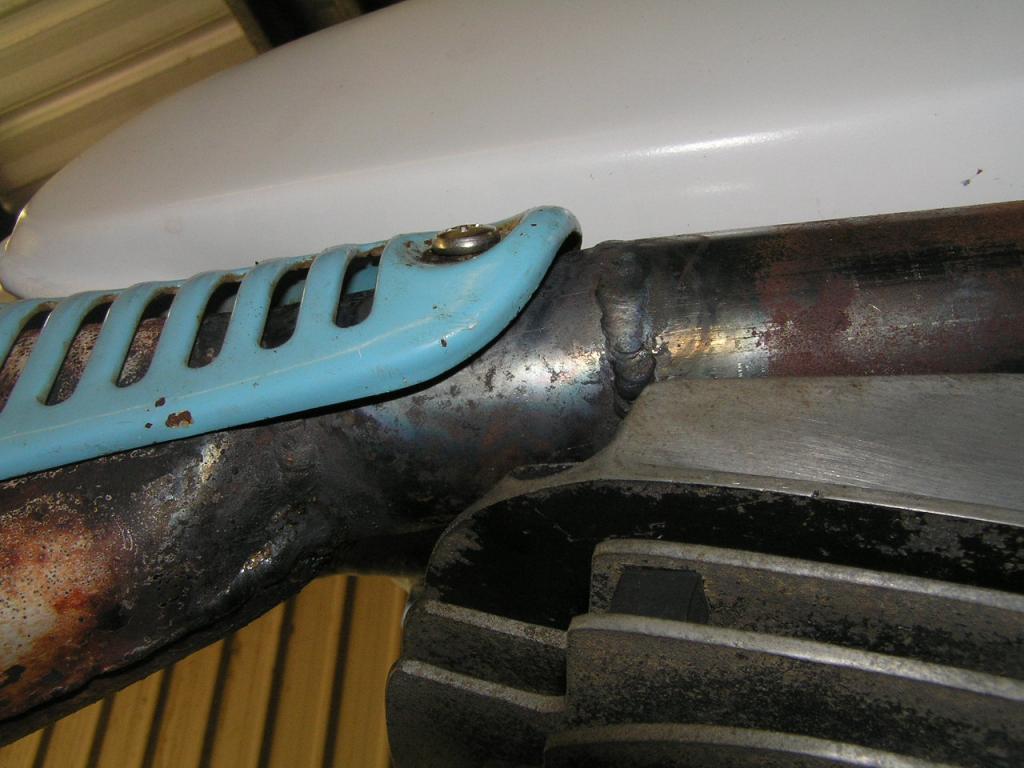

feetupfun Posted December 31, 2012 Report Share Posted December 31, 2012 Showing the making of the exhaust. Main chamber reshaped at front end to miss cylinder head, dent on inner side reshaped to clear the middle downtube. Rear end of chamber shortened to clear the gusset avove the shock mount. The routing of the section of tube above the head is critical. This one ended up with 3mm clearance to the head fins and 3mm clearance to the fuel tank. It would have been easier if I had used smaller diameter exhaust tubing. Quote Link to comment Share on other sites More sharing options...

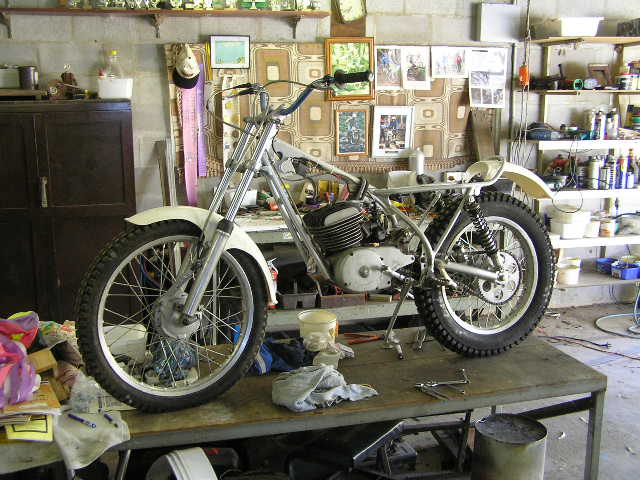

feetupfun Posted December 31, 2012 Report Share Posted December 31, 2012 Frame painted, motor fitted, assembly in progress Quote Link to comment Share on other sites More sharing options...

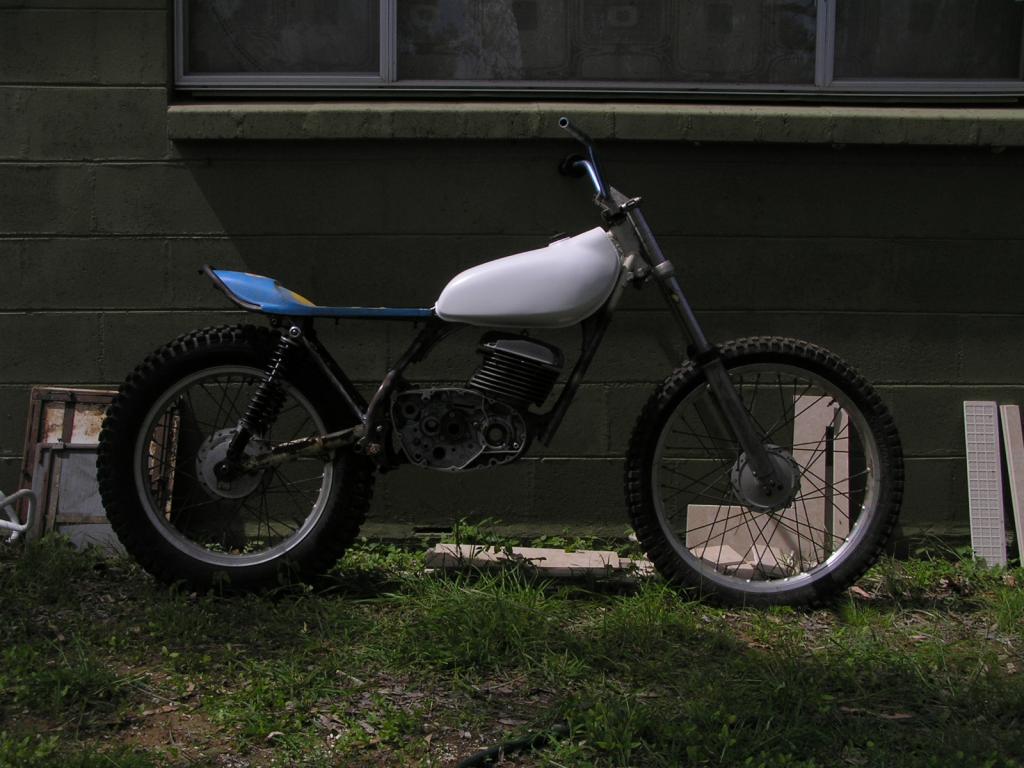

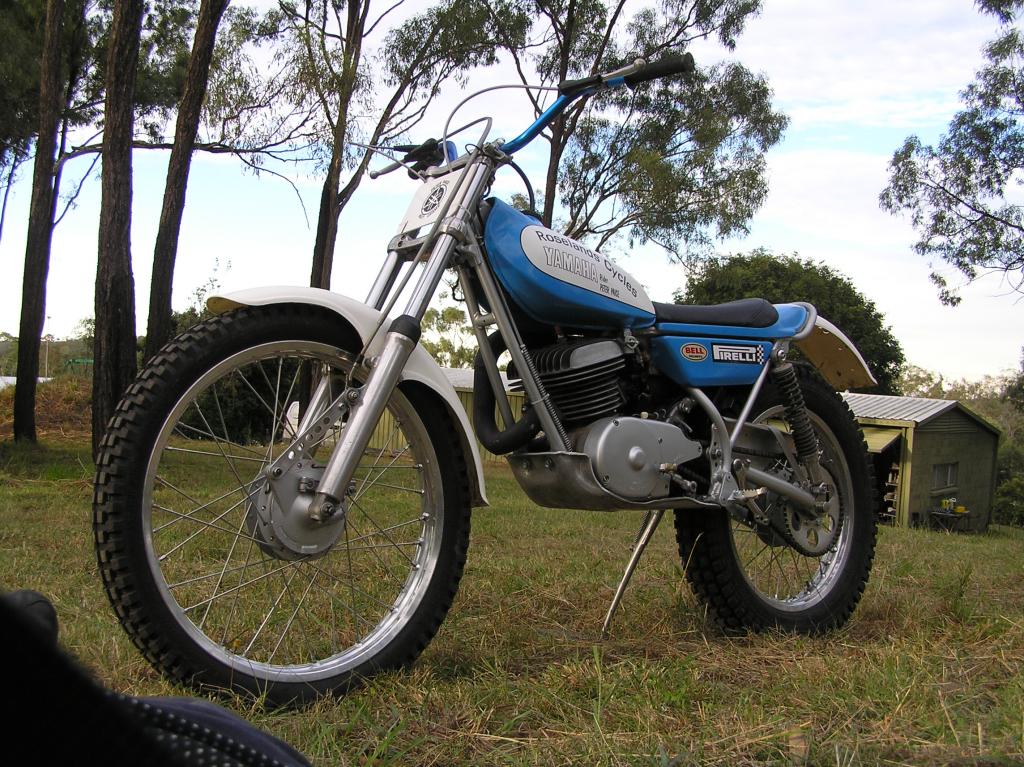

feetupfun Posted December 31, 2012 Report Share Posted December 31, 2012 photo of finished bike except for shockies Quote Link to comment Share on other sites More sharing options...
feetupfun Posted January 1, 2013 Report Share Posted January 1, 2013 magazine photo of original bike that this copy was built to celebrate. Photo taken at Aussie Titles 1976. Rider Aussie Champ Peter Paice. Quote Link to comment Share on other sites More sharing options...
feetupfun Posted January 1, 2013 Report Share Posted January 1, 2013 This is the finished bike being shown to Peter Paice. Quote Link to comment Share on other sites More sharing options...
tony27 Posted January 1, 2013 Report Share Posted January 1, 2013 (edited) Will do. Had forgotten this promise. Did anyone see the article in VMX Magazine? Sure did, you write very well David Is the toolbox mount completely gone now like it appears in the later photos, how did the standard airbox fit up with the shortening of the rear subframe? You've managed to show that there is a lot more that has to happen when modifying the frame than just the work on the frame, would not have thought about all the work needed on the main part of the exhaust to make it fit Edited January 1, 2013 by tony27 Quote Link to comment Share on other sites More sharing options...
b40rt Posted January 1, 2013 Report Share Posted January 1, 2013 Thanks David, as Tony said, these projects have a habit of growing arms and legs. Happy New Year Ross Quote Link to comment Share on other sites More sharing options...
