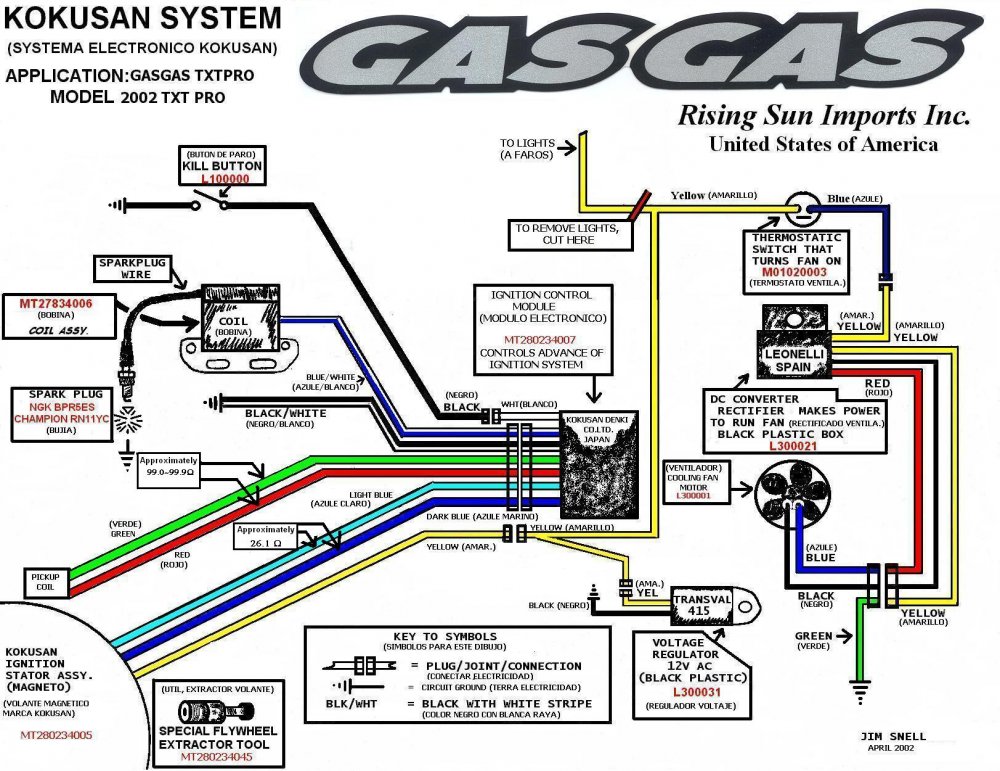

sw74gls Posted March 17, 2017 Report Share Posted March 17, 2017 Hi I have a Txt Pro 2004 with no spark issue and would really appreciate your help/info PLEASE!!! Here is what I have tested so far with the results:- * Plug = 4.03K (BPR5ES NGK). * All Earth Connectors & Coil cleaned plus Frame Bracket. * Coil Primary Circuit (both wires on unit) = 0.90 ohms. * Coil Secondary Circuit (spark plug cap) = 5.04k. * Disconnected Kill Switch wire from Earth/frame/Coil (the white from CDI to black/white on kill switch still connected) * Pickup Coil Red & Green wires (on stator side plug not CDI)= 94 ohms. I need help where to go now and what values I should be getting? or if the values on my coil, spark plug/cap, pickup coil are correct or not? Also I do not have the specific Txt Pro Kokusan Denki 2004 Wiring Diagram so instead using the txt pro 2002 which is very similar I would really appreciate it if any one could supply a picture/image for me please? Here is the txt pro 2002 I am currently following attached below:- Once again sorry for boring the pants off you but I would really really appreciate all your help guys as my head is very sore, thank you so much in advance, Simon....... 1 Quote Link to comment Share on other sites More sharing options...
reggie Posted March 17, 2017 Report Share Posted March 17, 2017 post-2532-0-59404200-1297888737.jpg I think this may be the wiring diagram for your bike. Quote Link to comment Share on other sites More sharing options...
reggie Posted March 17, 2017 Report Share Posted March 17, 2017 The original post was from "beeaj" on Feb 15, 2011 Quote Link to comment Share on other sites More sharing options...
thall1 Posted March 17, 2017 Report Share Posted March 17, 2017 give Steve a call at Motoplat - Bradford Ignitions (uk) 0044 (0)1209 482223.... he can test and repair the stators but will also know the static test figures.... Quote Link to comment Share on other sites More sharing options...
