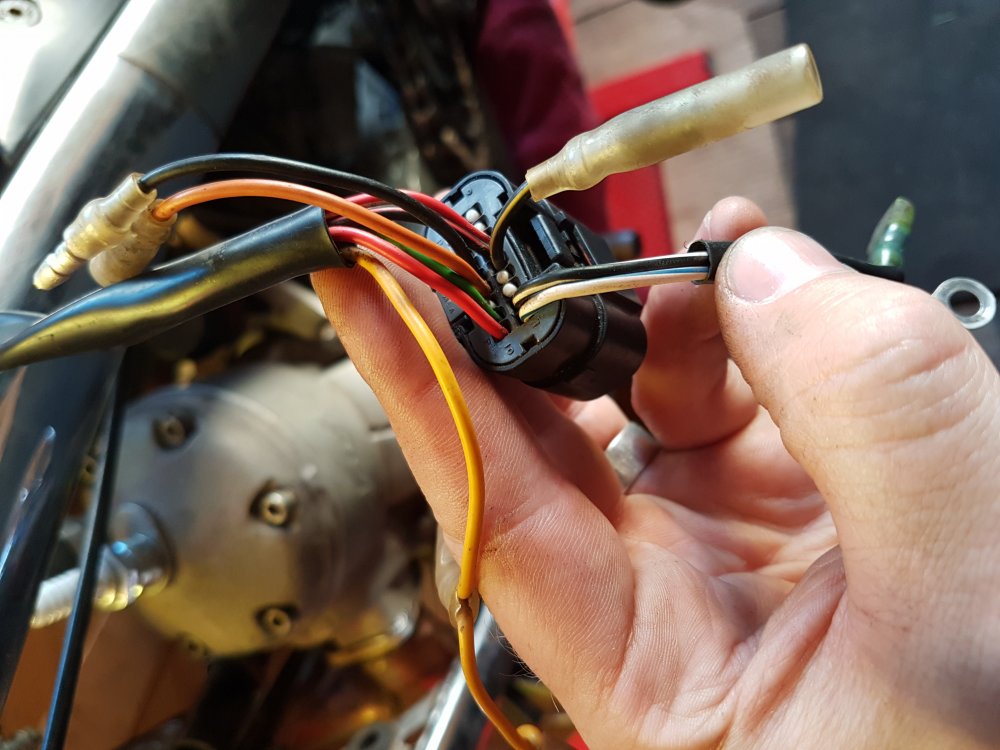

gassertxt Posted June 20, 2017 Report Share Posted June 20, 2017 Hi guys i need a bit of help with some wiring please.. i have a 2006 280 txt pro.. had some cutting out issues which have been explained to me by some of the guys on here which was great. Ive found various kokusan wiring diagrams on google however they are for different year bikes and not sll the wires match up Example.. the thermostat i have has an earth cable and a live (both black) but on the diagram it tells me to wire it one end (yellow)comes from the ignition into the thermostat and then the other wire (blue) goes into the converter.. I also would love if someone could identify what cables are what coming from the ignition as only 3 match.. the black for kill switch.. the black/white to earth and white/blue to coil.. the rest im lost. 1 Quote Link to comment Share on other sites More sharing options...
drca Posted June 20, 2017 Report Share Posted June 20, 2017 Here is what I have for a 2007 gasser, should be pretty close! That's from Jim Snell's. Quote Link to comment Share on other sites More sharing options...
gassertxt Posted June 21, 2017 Author Report Share Posted June 21, 2017 This is fantastic thankyou very much.. finally my bike is running. Much appreciated. Quote Link to comment Share on other sites More sharing options...
drca Posted June 21, 2017 Report Share Posted June 21, 2017 6 minutes ago, gassertxt said: This is fantastic thankyou very much.. finally my bike is running. Much appreciated. Glad to help and return the favor. I've gotten plenty of good help on this and other forums in the past. BTW, Jim Snell is usually a good resource for this can of stuff, altho he hasn't been active here for quite a while. Quote Link to comment Share on other sites More sharing options...
richt Posted June 21, 2017 Report Share Posted June 21, 2017 Black and the Orange go to the sun or rain switch, or if you don't have one fitted they can either be left unconnected or joined to each other so you can alternate between the 2 ignition mapping curves. Quote Link to comment Share on other sites More sharing options...
