hoodie2 Posted August 21, 2019 Author Report Share Posted August 21, 2019 Thanks Billy....good to be looking at the right schematic at last. Quote Link to comment Share on other sites More sharing options...
billyt Posted August 22, 2019 Report Share Posted August 22, 2019 Is there AC current/voltage coming out of G1 going in to B1 at the DC Rectifier / regulator coil? The voltage coming out of the DC rectifier is 12 VDC so the AC voltage going in should be higher... Although this does not speak to the AC voltage side that feeds the spark plug it is health check of the AC mag in general. Quote Link to comment Share on other sites More sharing options...
hoodie2 Posted August 22, 2019 Author Report Share Posted August 22, 2019 The output from G1 on kicking the bike over is only 3v. The stator has been rig tested again and tested alongside other rewound stators. It performed as it should. I'm confident in the wiring and the ground and the other components so am I looking at the Flywheel now? Quote Link to comment Share on other sites More sharing options...
hoodie2 Posted August 24, 2019 Author Report Share Posted August 24, 2019 Got another flywheel in the post so will try that and feedback. Seems unlikely but its the only thing that hasn't been repared, tested or replced. Quote Link to comment Share on other sites More sharing options...
hoodie2 Posted August 31, 2019 Author Report Share Posted August 31, 2019 This is defying logic now. I'm completely defeated! Stator, CDI and HT coil all tested again at Bradford ignitions and working fine. were compared with two other stators and performance was the same. Even listened to a spark clicking over a 15mm gap over the phone. re connected everything as in my earlier photos with sound connections and strong earth. Fitted a different flywheel. Not a spark. Is there anyway the stator plate fitting to the crankcase could have any effect on the stator output? Everything is reportedly working until I refit the stator plate onto the bike. Quote Link to comment Share on other sites More sharing options...
lineaway Posted August 31, 2019 Report Share Posted August 31, 2019 Sounds like you have something else grounded out. Is everything else connected or is coil etc. just hanging off the bike? 1 Quote Link to comment Share on other sites More sharing options...
hoodie2 Posted August 31, 2019 Author Report Share Posted August 31, 2019 It's loose on the bike where I can see it but all insulated and soundly connected up. I have an earth strap to the frame that the CDI and HT coil are grounded to. Quote Link to comment Share on other sites More sharing options...
b40rt Posted August 31, 2019 Report Share Posted August 31, 2019 Coil earths the through body, so should be properly mounted onto clean bare metal. Quote Link to comment Share on other sites More sharing options...
lineaway Posted August 31, 2019 Report Share Posted August 31, 2019 I went back and reread your whole post. The CDI does not ground, that is the kill button stop to ground. Quote Link to comment Share on other sites More sharing options...

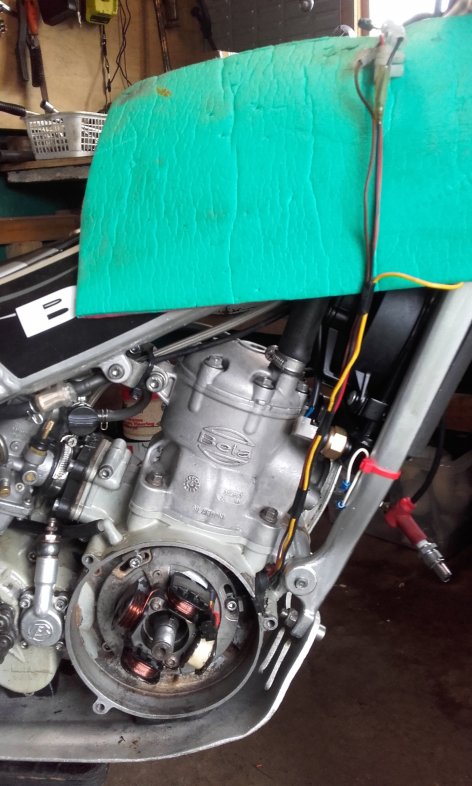

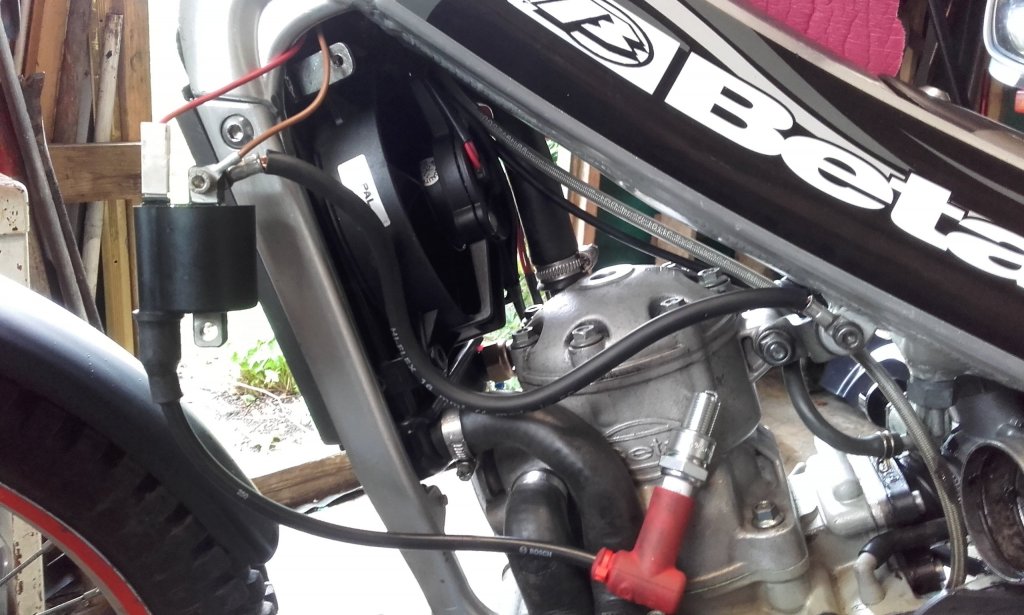

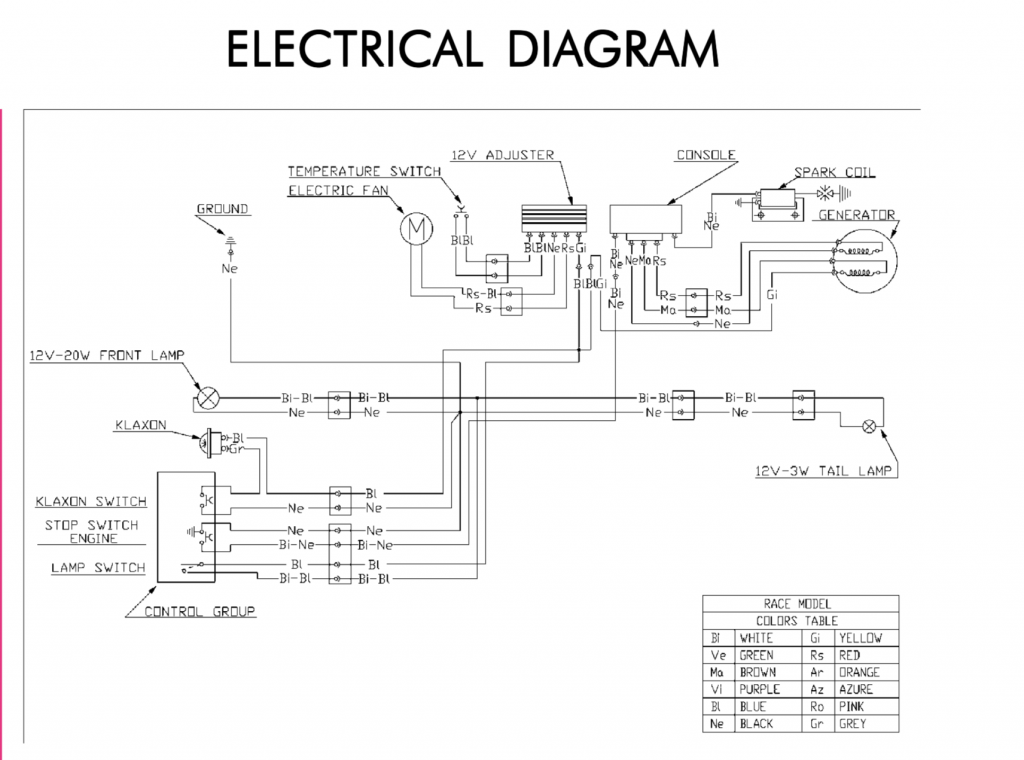

hoodie2 Posted August 31, 2019 Author Report Share Posted August 31, 2019 Looking at the diagram Billy posted again that's not how mine wires up. Mine has three inputs to the CDI from the stator, red, black & Brown. the outputs are red to the HT coil, black/white to a kill switch and brown to ground. This ground is usually connected to the same earth point as the HT coil which is a bracket on the radiator. I've set up a separate more secure ground as in my earlier picture. Quote Link to comment Share on other sites More sharing options...
lineaway Posted August 31, 2019 Report Share Posted August 31, 2019 You have an 00 or `01? Quote Link to comment Share on other sites More sharing options...
hoodie2 Posted August 31, 2019 Author Report Share Posted August 31, 2019 It's an 06 model. Quote Link to comment Share on other sites More sharing options...
lineaway Posted September 1, 2019 Report Share Posted September 1, 2019 Supposedly that is the correct diagram, but I believe you on what you have in front of you. The wiring on these always sucked as you never had much info to go by. Quote Link to comment Share on other sites More sharing options...

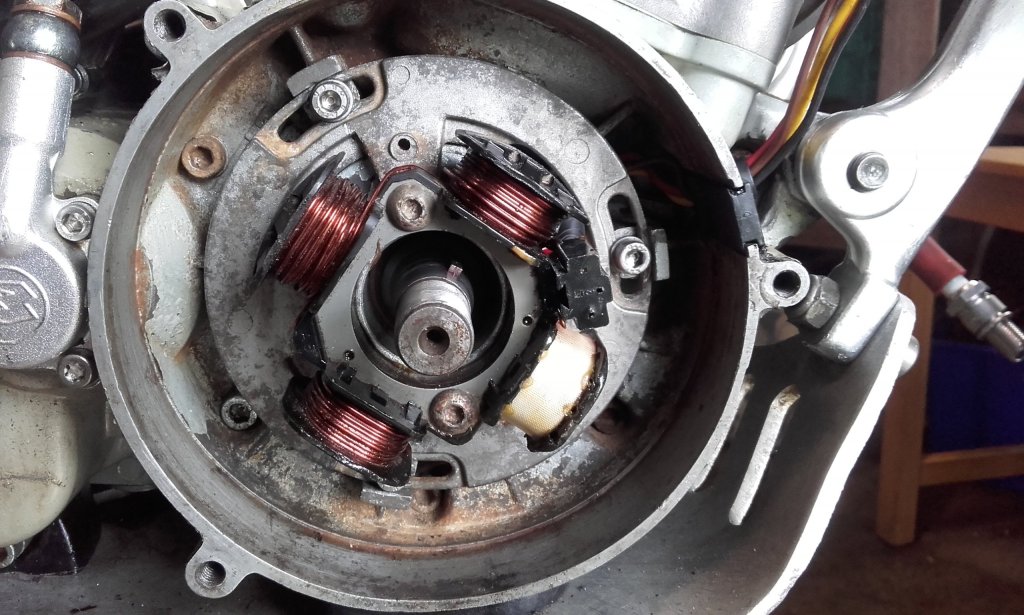

hoodie2 Posted September 1, 2019 Author Report Share Posted September 1, 2019 (edited) Today I took the stator back off and checked it over again. Took the back plate off. checked the grounds soldered to the stator frame. Sanded and degreased all contact points on the stator mount and back plate and rebuilt with new clean screws. No difference. Cause I've run out of things to try I also tried refitting the kill switch and also grounding my earth strap to something external to the bike. Nothing! Edited September 2, 2019 by hoodie2 Quote Link to comment Share on other sites More sharing options...
hoodie2 Posted September 2, 2019 Author Report Share Posted September 2, 2019 As the schematic doesn't represent exactly what I'm looking at I'm wondering about the unfeatured brown wire from CDI to HT coil. The A/C in from the stator via the CDI to HT coil is red rather than the Black/White in the diagram. Is the Brown simply a ground that returns all the way from HT coil, through the CDI and back to ground on the mounting plate of the stator? If so does the HT coil not need a separate ground to the bike frame? Tried both and still no spark but just trying to understand the system better. Quote Link to comment Share on other sites More sharing options...
