burns1989 Posted June 27, 2020 Report Share Posted June 27, 2020 Hi all where can I get new head light switch and loom wiring pluss the rear light loom as well . Thanks Quote Link to comment Share on other sites More sharing options...
worldtrialchamp Posted June 27, 2020 Report Share Posted June 27, 2020 Beta dealer? Quote Link to comment Share on other sites More sharing options...
burns1989 Posted June 28, 2020 Author Report Share Posted June 28, 2020 Has any one got a picture of the lay out of it all as looking I have no lighting loom , it's just for the fan ect Quote Link to comment Share on other sites More sharing options...
burns1989 Posted June 28, 2020 Author Report Share Posted June 28, 2020 This is part of the loom I'm missing as the yellow wire is connected straight into the rectifire and then the other out let is the fan and fan switch . The bridge I need is the other part of the loom . Where is the best place to get it Quote Link to comment Share on other sites More sharing options...

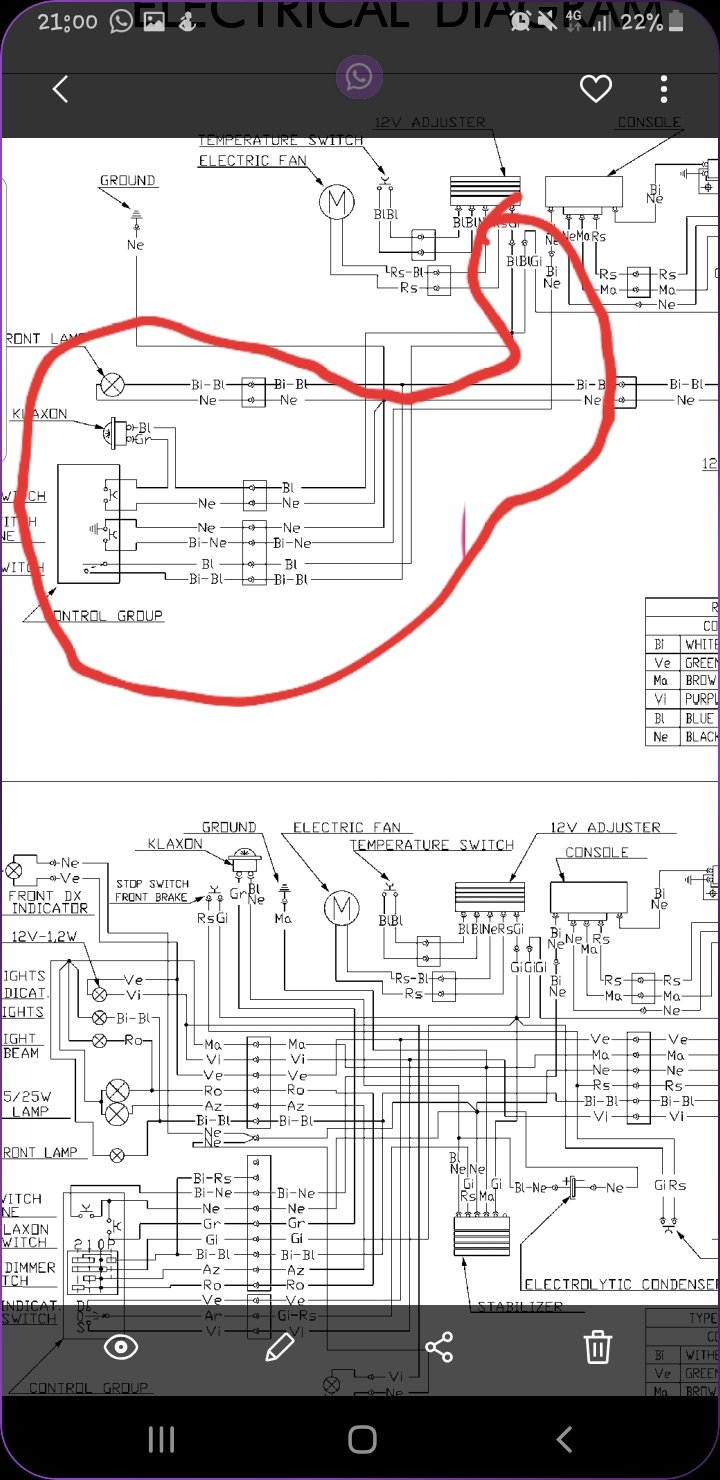

burns1989 Posted June 29, 2020 Author Report Share Posted June 29, 2020 Right I rung beta uk and they no longer have that part if the loom nore does the factory, so has any one got a clear picture of a 2008 rev 3 250 wiring diagram so that I can make my own loom up , or even show pictures of where ll the wiring goes . Thanks Quote Link to comment Share on other sites More sharing options...
dan williams Posted June 29, 2020 Report Share Posted June 29, 2020 That wiring drawing would typically be all you need to make your own but I've found the Beta diagrams to have inaccuracies. You could try one of the bike breakers in England. There'll be nothing in the US since most riders here just pull the headlight and other wiring off and lose it somewhere in the garage. Easier to schedule tea with the queen than get a trials bike road registration here. Quote Link to comment Share on other sites More sharing options...
burns1989 Posted June 30, 2020 Author Report Share Posted June 30, 2020 So could I make my own wiring and do you know what voltage is coming from the power stator winding ? Quote Link to comment Share on other sites More sharing options...
dan williams Posted June 30, 2020 Report Share Posted June 30, 2020 Voltage and frequency varies with engine speed but it has to be minimum around 15-16 volts RMS since there’s some drop in the regulator. I think it probably runs between 15-25 volts. The voltage will also be affected somewhat by the load. Quote Link to comment Share on other sites More sharing options...
worldtrialchamp Posted June 30, 2020 Report Share Posted June 30, 2020 On 6/28/2020 at 4:44 AM, burns1989 said: Hi all where can I get new head light switch and loom wiring pluss the rear light loom as well . Thanks Quote Link to comment Share on other sites More sharing options...
burns1989 Posted July 1, 2020 Author Report Share Posted July 1, 2020 7 hours ago, worldtrialchamp said: Have you got this for sale or is it a picture off the net , thank you Quote Link to comment Share on other sites More sharing options...
worldtrialchamp Posted July 1, 2020 Report Share Posted July 1, 2020 3 hours ago, burns1989 said: Have you got this for sale or is it a picture off the net , thank you Can sell it.. Have a few of them. Got a few bits and pieces.. Let me figure out a price Quote Link to comment Share on other sites More sharing options...
burns1989 Posted July 1, 2020 Author Report Share Posted July 1, 2020 Ok cool let me know how much and we can sort it out . Thank you Quote Link to comment Share on other sites More sharing options...
dan williams Posted July 1, 2020 Report Share Posted July 1, 2020 I might as well post this again. This is my diatribe on the cheesy system ground on my '08. It may be of some use to you. Beta_wiring.pdf Quote Link to comment Share on other sites More sharing options...
