dr nosh Posted December 8, 2020 Report Share Posted December 8, 2020 So, at the point now of trying to get some life out of the Motoplat ignition. Measured the coil - Primary 3 ohms, secondary 13.8 k ohms. No short to earth. Happy with that. The engine is grounded - Multiple points checked from engine to frame and fittings. Condenser is mounted under the tank. Body is grounded. Red wire to points is not grounded. So, in the ign area I have 2 wires to connect. Red (as already mentioned) is to the condenser. Yellow goes to a coil. The black wire on that same coil goes up to the ignition coil. I can attach the red wire and when the points are closed there is continuity, Closed Circuit, and when the points are open there is no continuity - Open Circuit, as you would expect. When I attach the yellow wire, there is continuity when the points are open or closed?? How should the wires be connected to the points, and what is the purpose of the insulating washers on either side of the bolt holding the points spring.....or have I assembled the points incorrectly? Last step before getting it running, and its driving me nuts. Quote Link to comment Share on other sites More sharing options...
teamferret Posted December 8, 2020 Report Share Posted December 8, 2020 Fairly sure this is normal, the points are 'earthing' through the condenser. I seem to remember on the 123 I had many years ago disconnecting the condenser to check the timing using on of those buzzer devices. 1 Quote Link to comment Share on other sites More sharing options...
keychange Posted December 8, 2020 Report Share Posted December 8, 2020 Not sure you need the red wire, maybe a lighting wire. Your black wire should go to condensor and on to the ignition coil with a loop going to kill switch. There are only two wires in the ignition circuit. Quote Link to comment Share on other sites More sharing options...

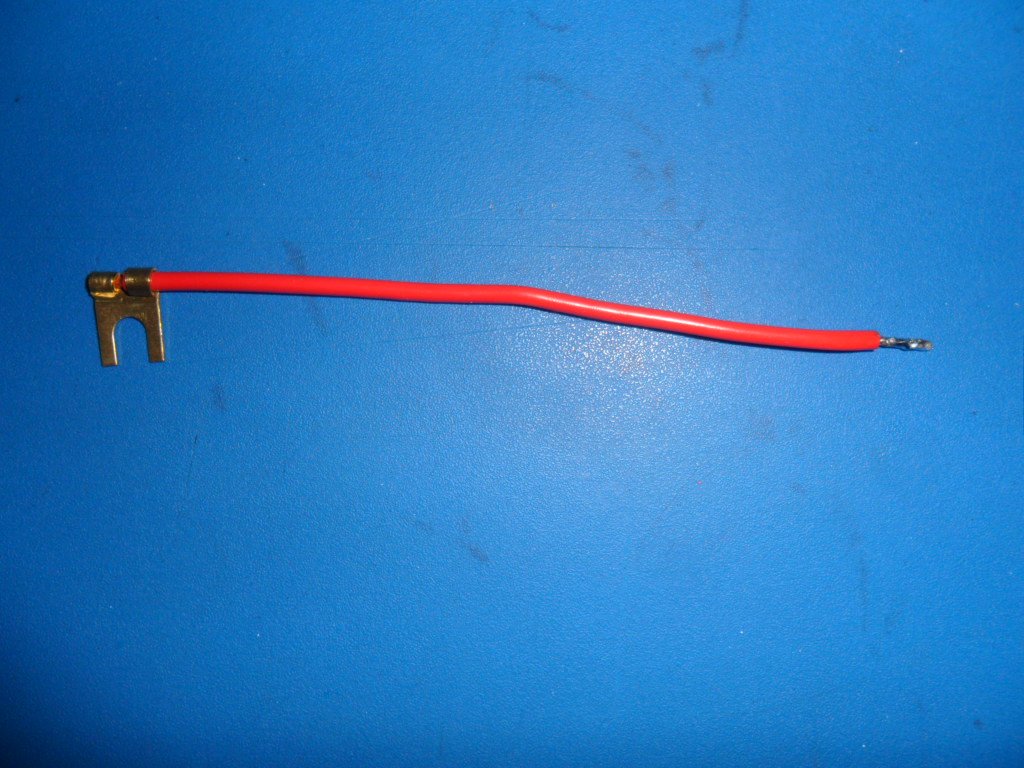

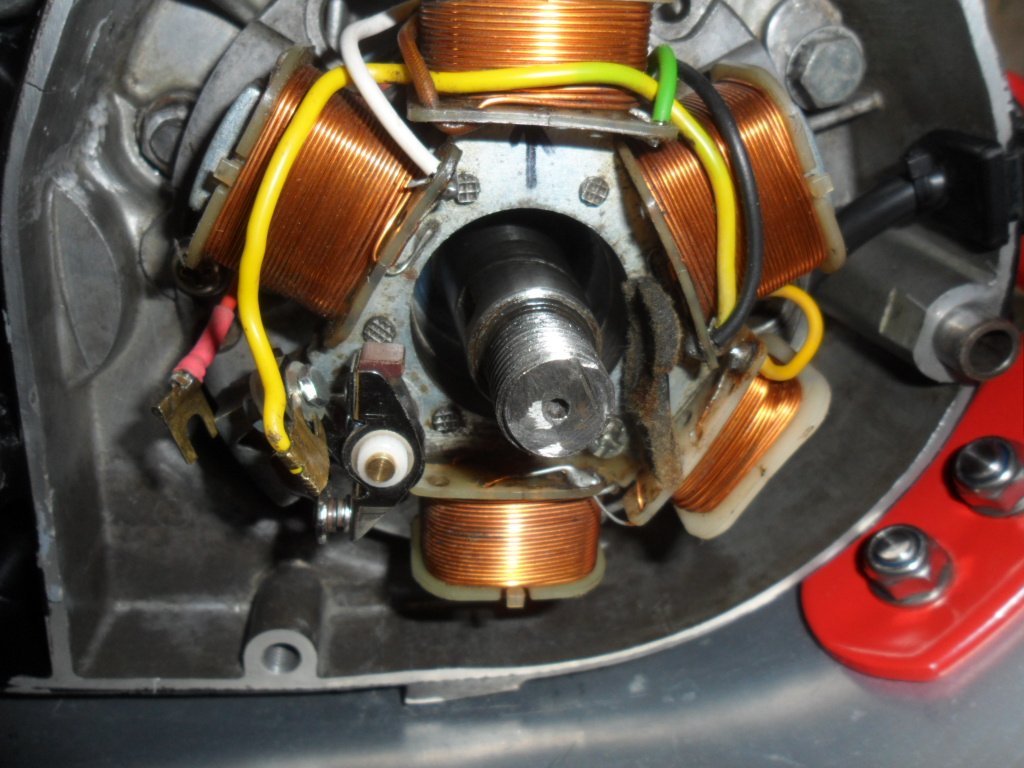

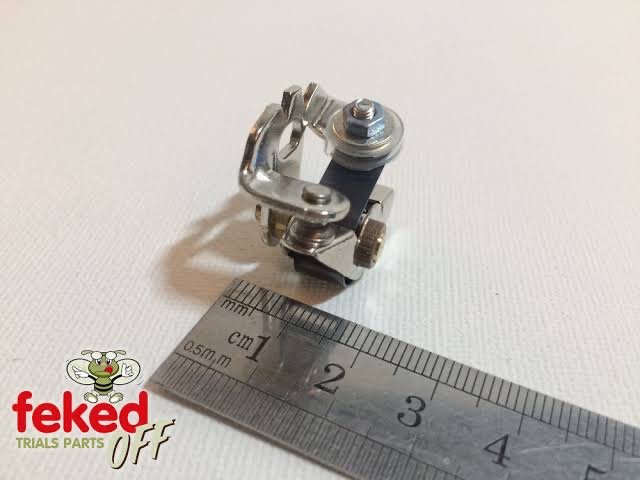

dr nosh Posted December 30, 2020 Author Report Share Posted December 30, 2020 Still struggling with this. Which side should the Yellow be attached to? The 'fixed side' Left, or the 'moving side' Right? Wha is the purpose of the insulating washers on either side of the bolt through the points? In the package with the new condenser was this Red wire. Looks like this solders to the 'button' point of the condenser, but what does the terminal connect to? (In the first picture of the coils, the red wire is the extended lead to go up to the condenser that I will mount under the tank) Quote Link to comment Share on other sites More sharing options...
keychange Posted December 30, 2020 Report Share Posted December 30, 2020 (edited) Wire it as per my previous post or run the red wire from condensor to coil on same terminal as black wire. The insulating washer are to isolate the side of the points going to the coil from the frame....you really need to learn to use google. Edited December 30, 2020 by keychange Quote Link to comment Share on other sites More sharing options...

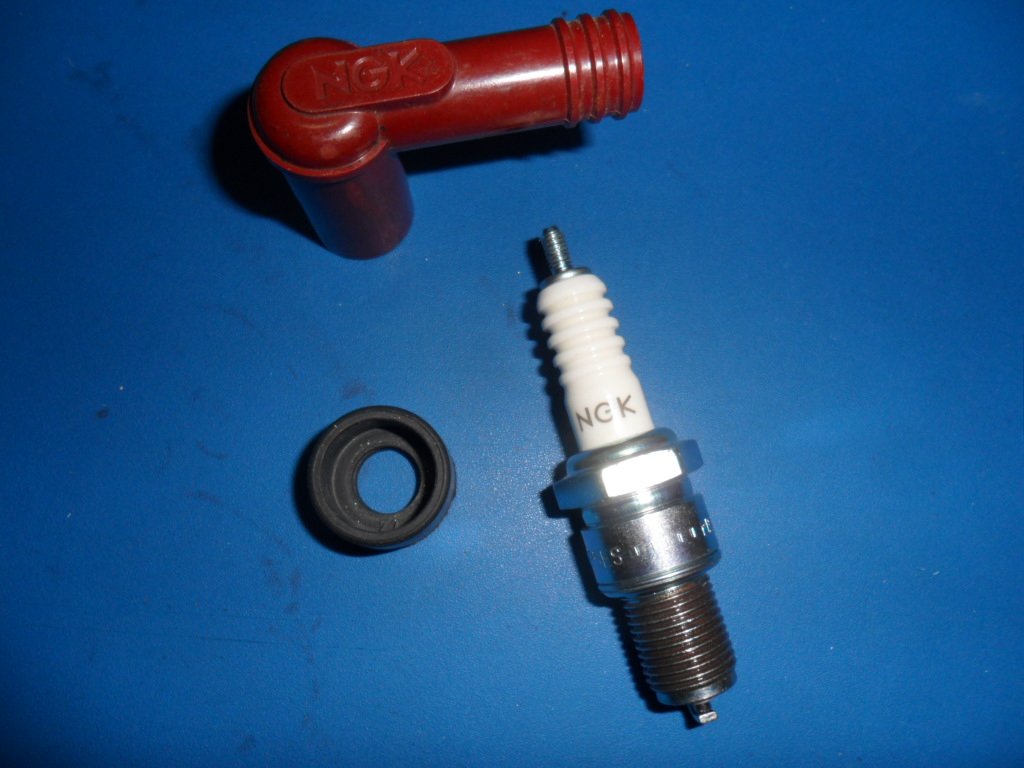

dr nosh Posted December 31, 2020 Author Report Share Posted December 31, 2020 OK, so my Googling skill need increasing, and thank for your help, its appreciated, .......but.......the reason for the problem......not how I had wired it up.....new NGK plug, new NGK cap.....and the rubber moisture cover actually preventing the plug from 'snapping' home on the connection. Removed the rubber cover and bingo, a connection and a spark.? Now who would have thought that would have been the issue?? Wasted hours on this......arrrgh.? Quote Link to comment Share on other sites More sharing options...

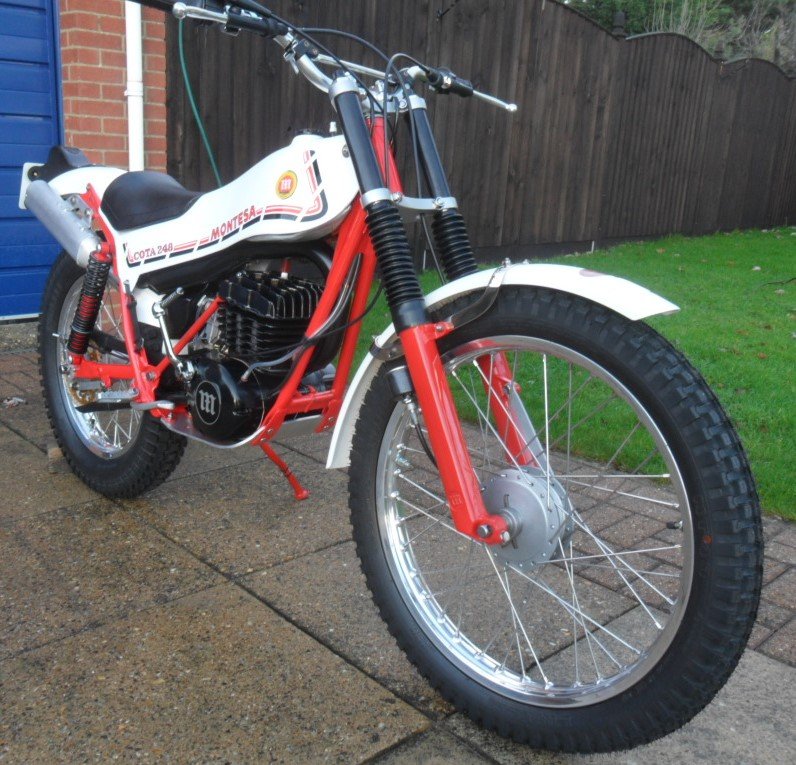

dr nosh Posted January 3, 2021 Author Report Share Posted January 3, 2021 (edited) Its now running, after a long, a very long restoration. Started with a frame, and the rest of it was in cardboard boxes, and all jumbled up. Oh, I do like a jigsaw puzzle. Edited January 3, 2021 by dr nosh Quote Link to comment Share on other sites More sharing options...
