GavinH Posted February 23, 2022 Report Share Posted February 23, 2022 Hello, I'm new to Trials Central and this is my first post... I decided to have a go at trials, bought a 2013 EVO 300 2T and have downloaded all the manuals and info I could find. I spent a couple of seasons club racing short circuits and built my own 750 Yamahas, so I'm reasonably confident on the tools but specs/settings supplied by Beta seem a bit sketchy compared to what I'm used to from Yamaha. I'm about 14 stone suited and booted and have bought a pair of 10% uprated springs to fit. For the fork, the owners manual says "Note : For screw A (triple tree clamps): torque wrench setting 7,8 : 9,1 Nm" but gives no torque info for the caps or anything else; I'm guessing 7.8Nm is the lower yoke and 9.1Nm the upper one? Is there a document or manual anywhere with more torque setting info? The Beta is built a lot lighter than what I'm used to and I don't want to strip any threads. Thanks, Gavin Quote Link to comment Share on other sites More sharing options...
totty79 Posted February 23, 2022 Report Share Posted February 23, 2022 (edited) There's a table of torque settings around 4 pages long, do you have that? I keep a copy of it rolled up with my torque wrench but I've just had a look and I can't find the pdf version or the link to where ever I downloaded it from - it is out there somewhere though. Caps just need to be wound fully in, they don't really need any torque they wont work loose. Edited February 23, 2022 by totty79 Quote Link to comment Share on other sites More sharing options...
GavinH Posted February 23, 2022 Author Report Share Posted February 23, 2022 Thanks, that sounds like exactly what I was looking for. Hopefully someone will post a link or pdf. Quote Link to comment Share on other sites More sharing options...
totty79 Posted February 23, 2022 Report Share Posted February 23, 2022 Beta UK are also really helpful, worth a try. If you haven't got a copy within a few days PM me and I'll take photos of my printed copy. Quote Link to comment Share on other sites More sharing options...
GavinH Posted February 23, 2022 Author Report Share Posted February 23, 2022 Thanks, that's very helpful. I'll try Lampkin's tomorrow and get back to you if they can't help. Quote Link to comment Share on other sites More sharing options...
billyt Posted February 24, 2022 Report Share Posted February 24, 2022 (edited) No need to torque the top fork caps. Once you tighten up the top triple clamps Allen heads they will keep the fork caps in place. Hence why you have to loosing the top Allen head screws before you attempt to loosen the top fork caps. Edited February 24, 2022 by billyt Quote Link to comment Share on other sites More sharing options...
GavinH Posted February 27, 2022 Author Report Share Posted February 27, 2022 Ok... I fitted the stiffer springs from Beta UK yesterday (80Nm front, 'K8' rear) and refilled the fork with 5w oil - the old fluid that came out was literally the consistency of custard! If anyone is interested, for my suited-and-booted 14 stone, this setup gives 55mm front sag with zero preload, and 60mm rear sag with the adjuster about 10mm out from full in. Totty69 -the only torque info that Beta UK had was the table for engine and engine-to-frame fasteners so if you have more than that and can post a scan/photo I'd be very grateful. In the absence of any other info I torqued the axle and caliper bolts to a bit more than I would on my mountain bike 😄 Quote Link to comment Share on other sites More sharing options...

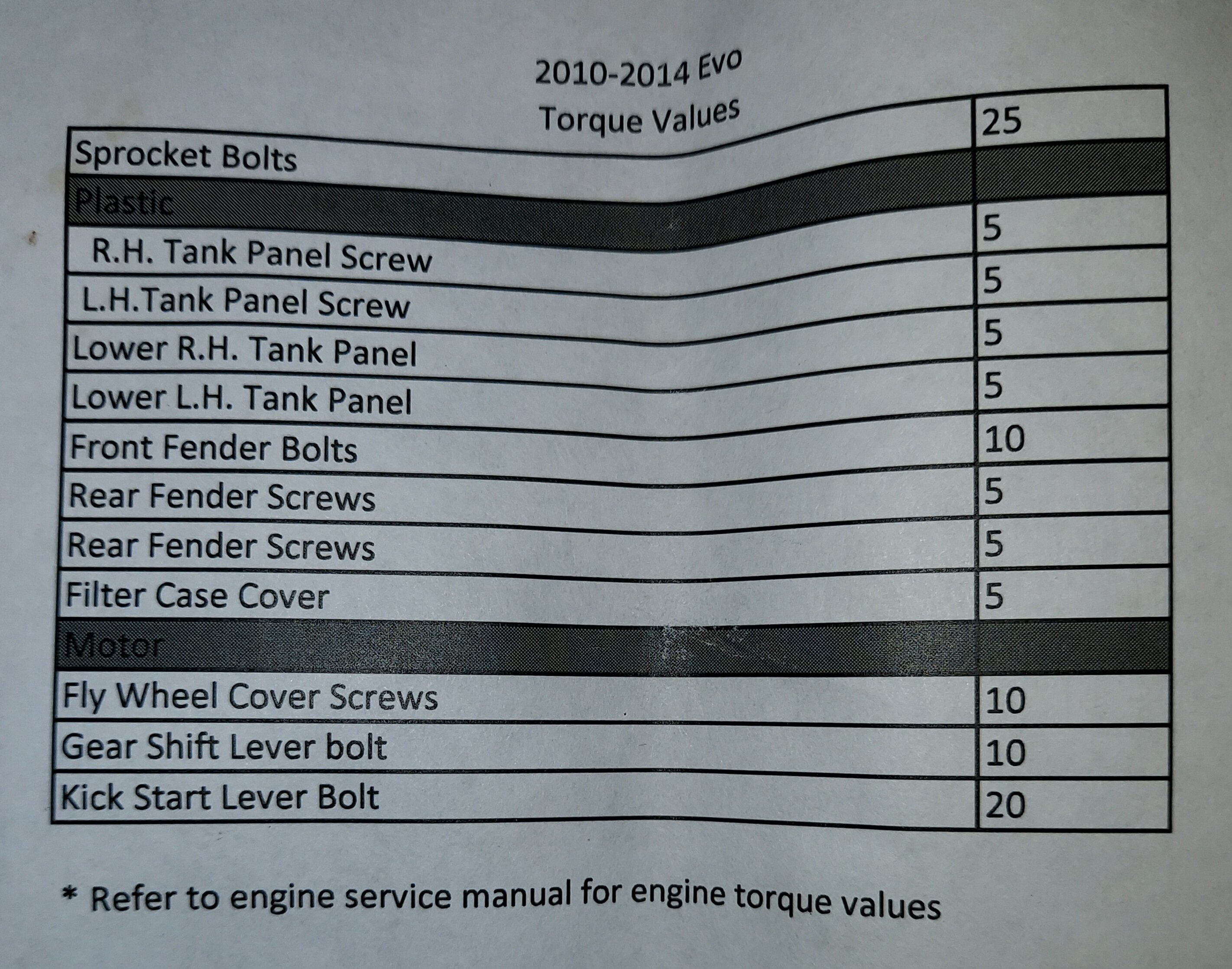

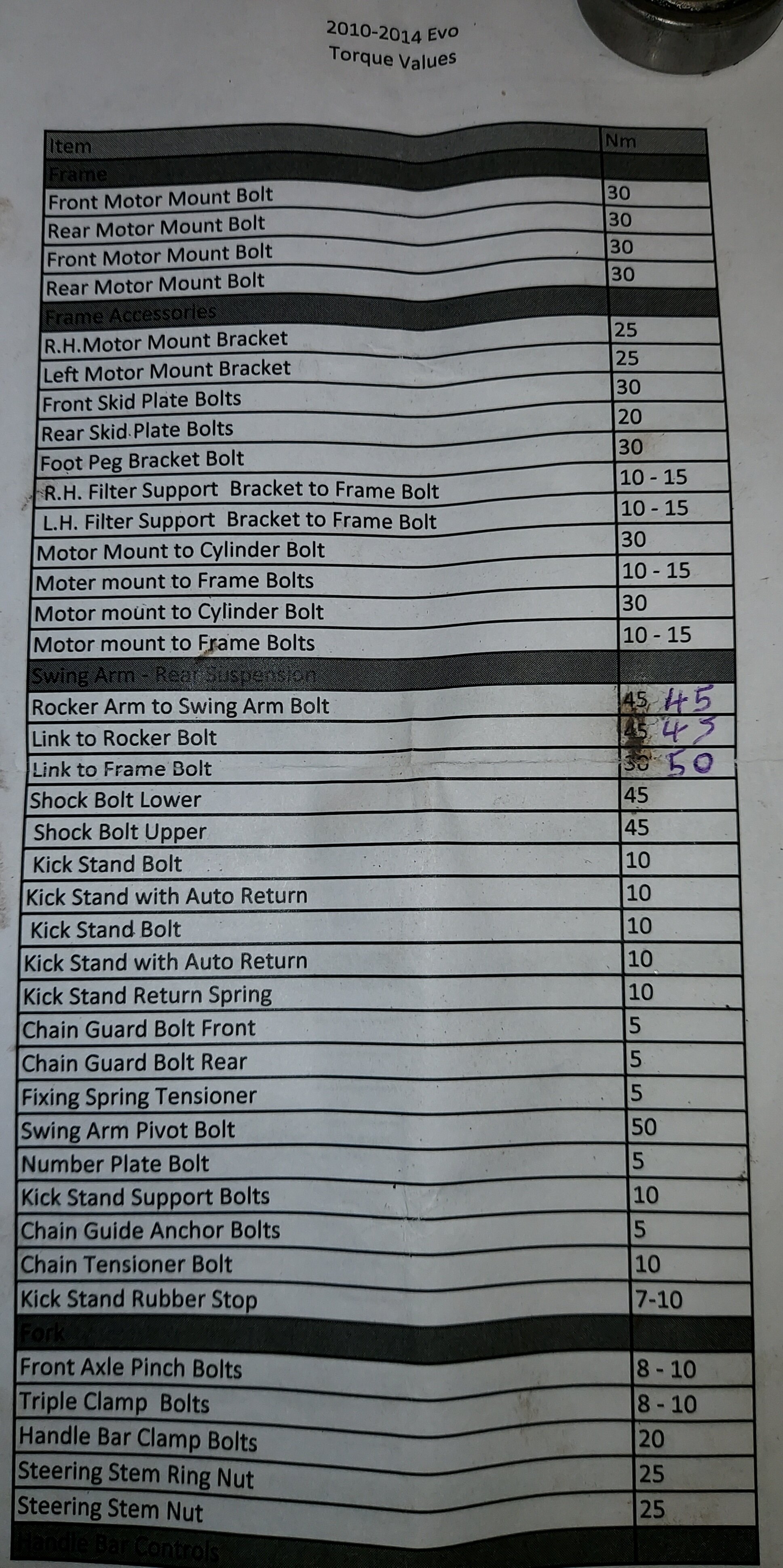

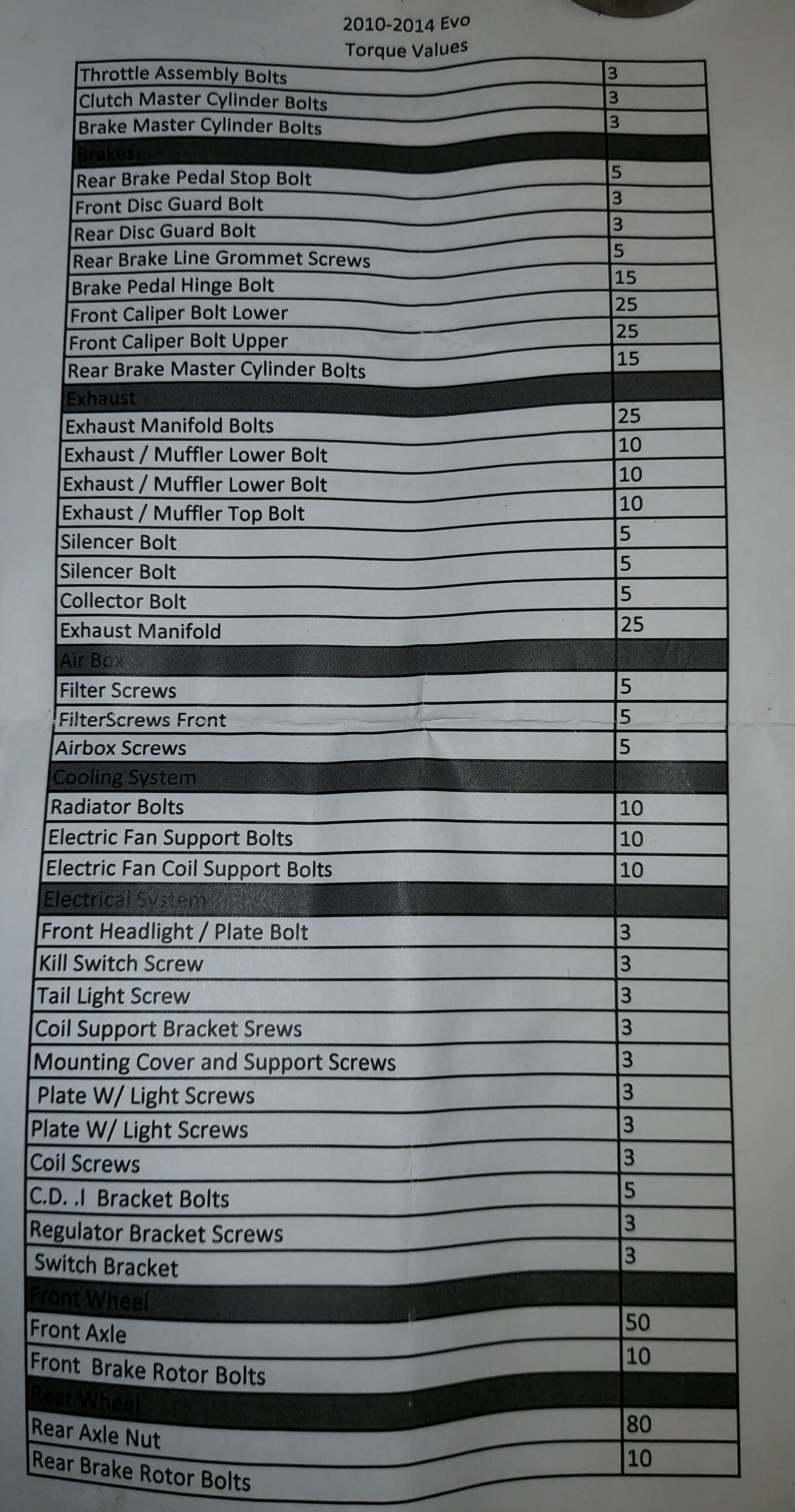

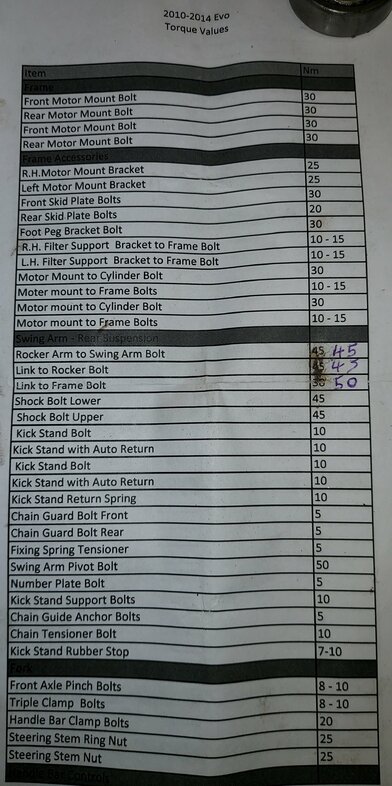

totty79 Posted February 28, 2022 Report Share Posted February 28, 2022 Torque values attached. It says 2010 to 2014 but most figures will apply to all years, just be cautious about which parts have changed. The hand written numbers aren't changes, they're just because dirt made the printed ones hard to read. 1 Quote Link to comment Share on other sites More sharing options...
GavinH Posted February 28, 2022 Author Report Share Posted February 28, 2022 Brilliant! Thanks very much for taking the time to post this, I really appreciate it. Gavin Quote Link to comment Share on other sites More sharing options...
totty79 Posted February 28, 2022 Report Share Posted February 28, 2022 (edited) The hand written 50 for link to frame bolt should be 30, I've zoomed in and it's clearly a 3 not a 5, they aren't a strong bolt the heads can break off. Edited February 28, 2022 by totty79 Quote Link to comment Share on other sites More sharing options...
GavinH Posted February 28, 2022 Author Report Share Posted February 28, 2022 (edited) Yes, thanks - I caught that having just serviced the linkage whilst replacing the spring. I've been sitting typing the values into a spread sheet whilst watching TV. PDF attached... 2010-2014 Beta EVO Torque Values.pdf Edited February 28, 2022 by GavinH typo 1 Quote Link to comment Share on other sites More sharing options...
ascended_master Posted June 4, 2022 Report Share Posted June 4, 2022 Top post. All Evo torques in one place at last. Deserves a pin, very useful mate. Quote Link to comment Share on other sites More sharing options...
